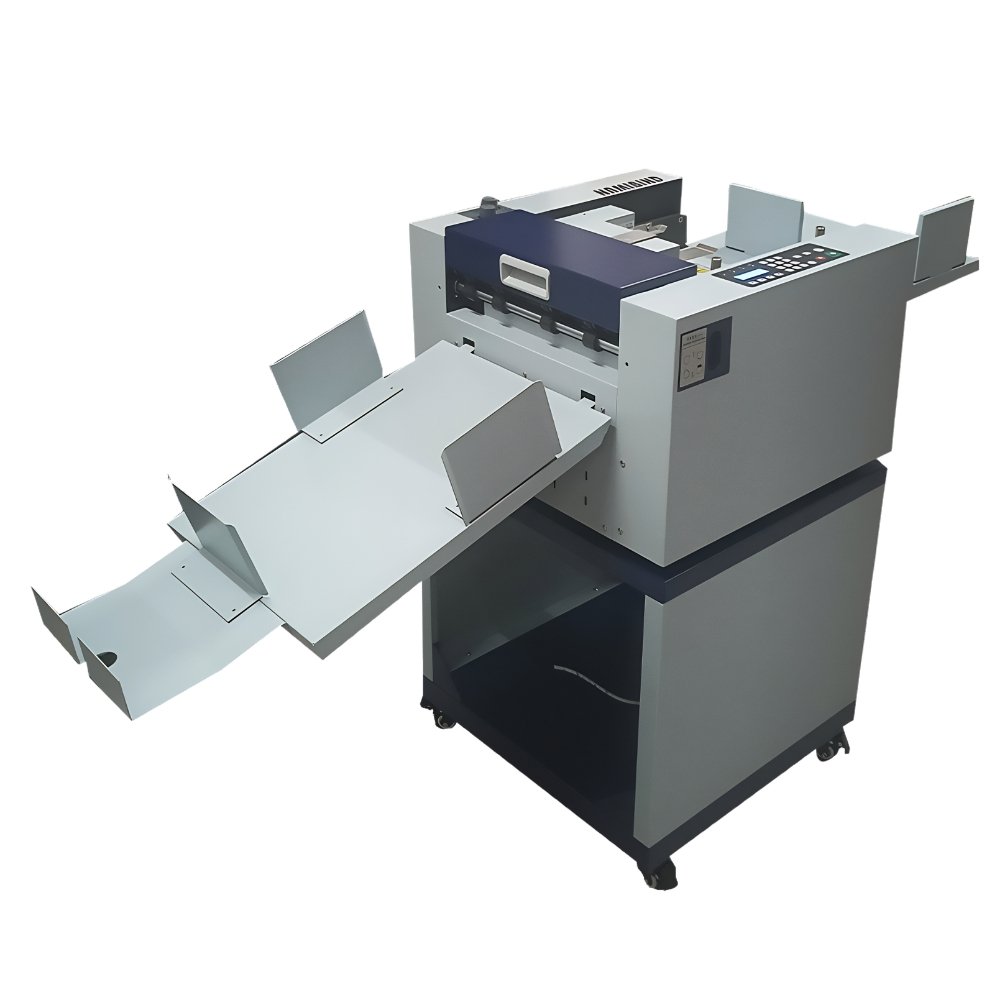

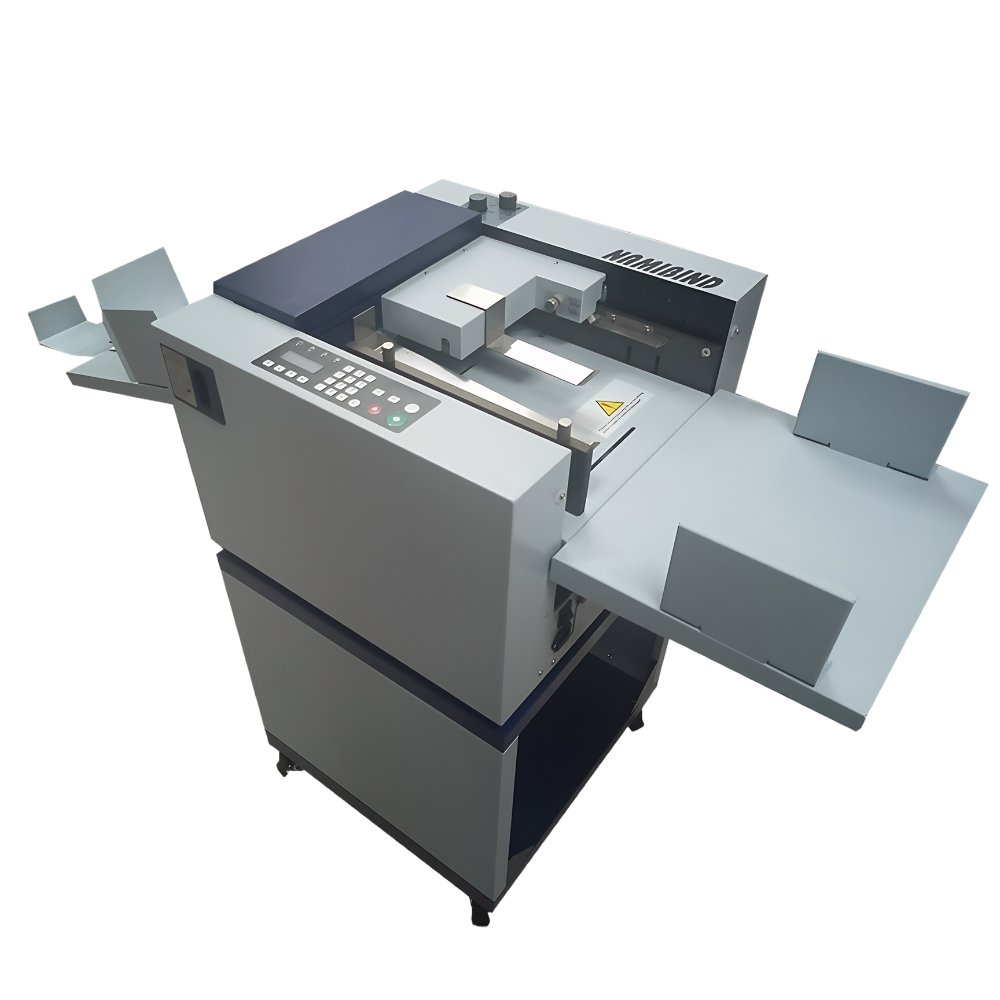

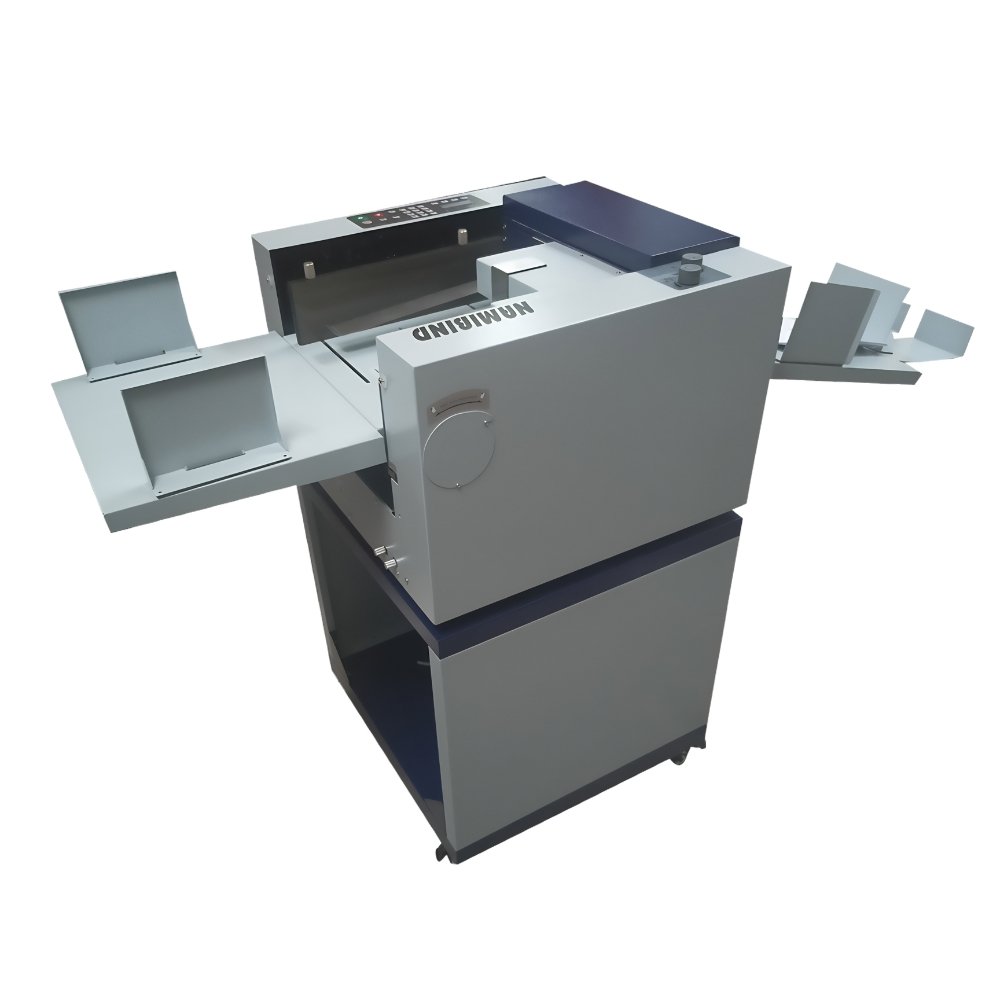

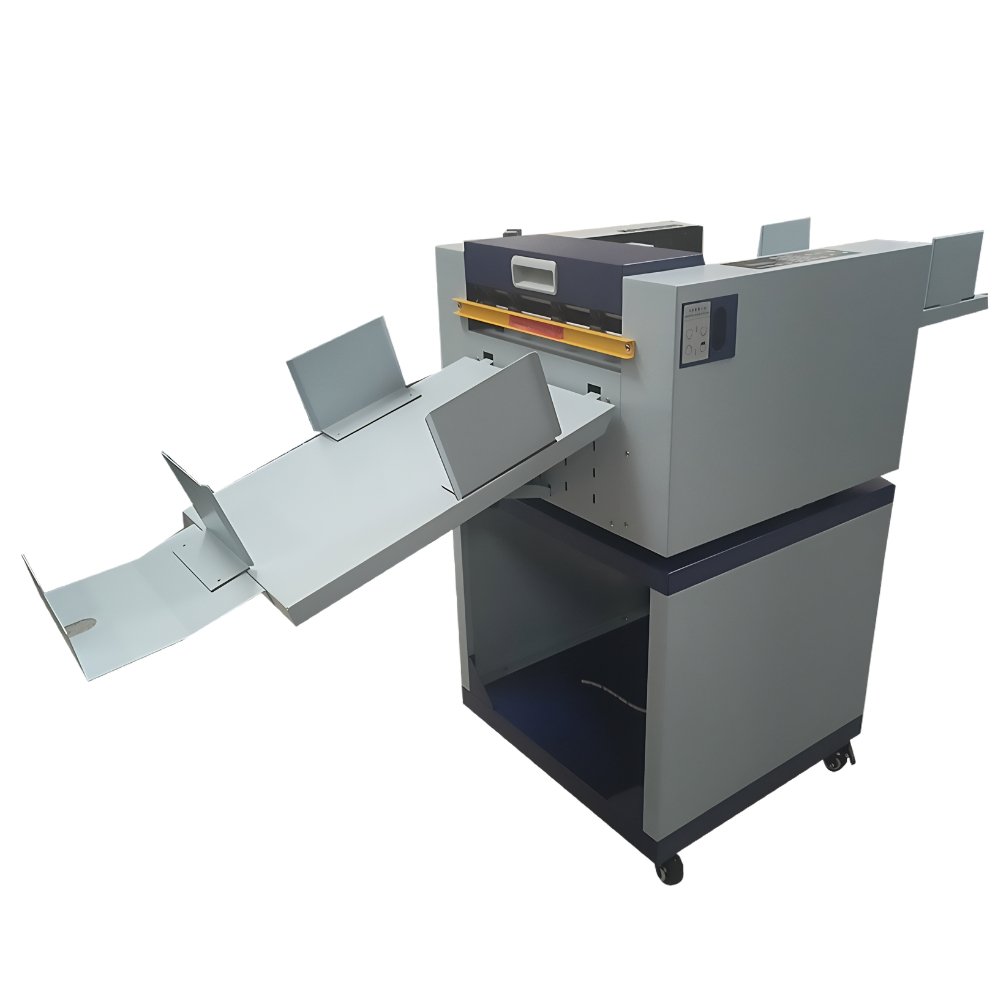

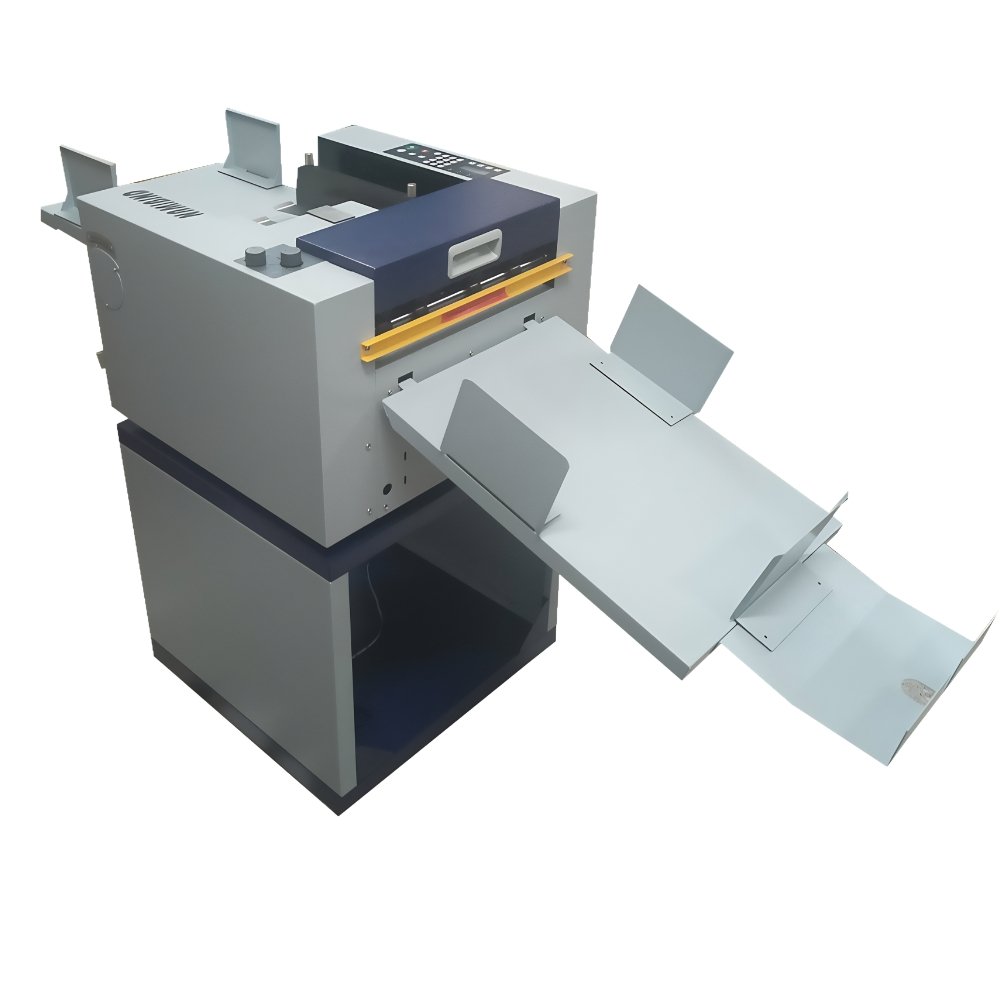

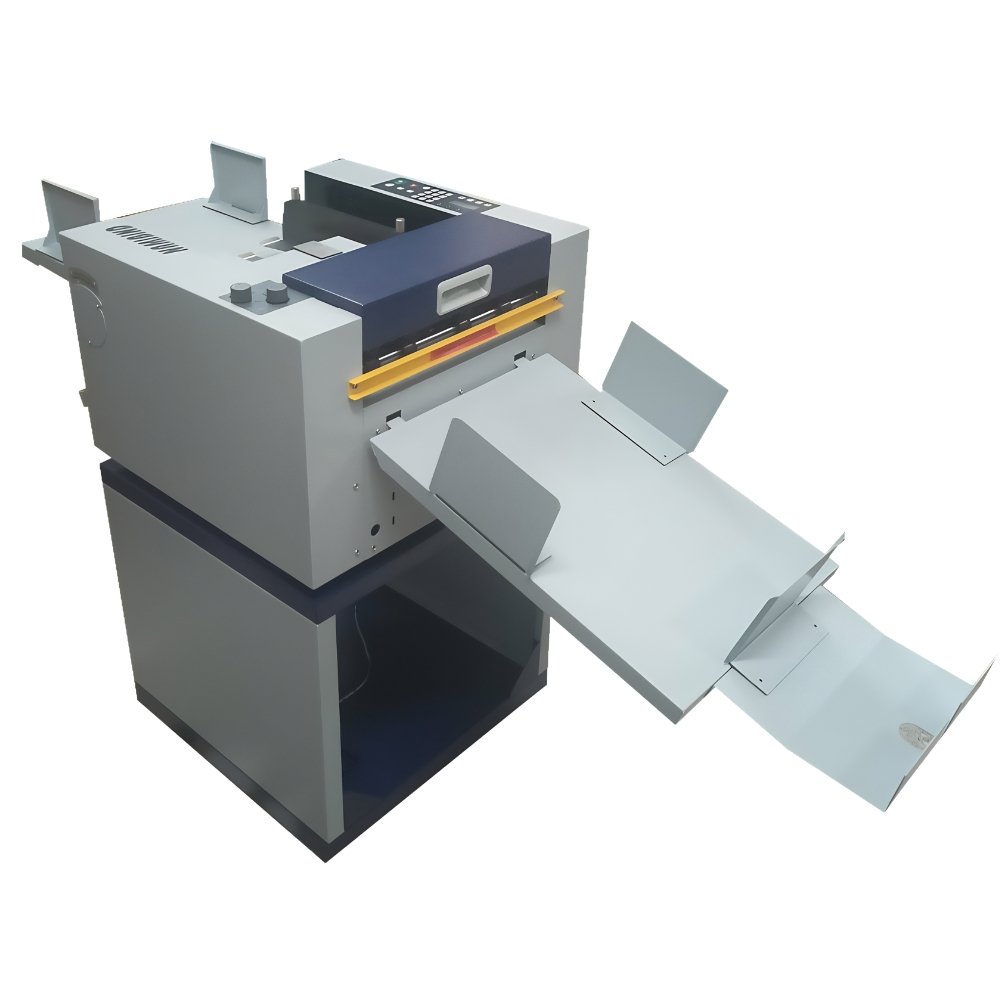

Introducing the Namibind Digital Creasing and Perforation Machine – Model DCM 3530 A, your ultimate solution for precision paper processing. Whether you’re running a print shop or a publishing house, this cutting-edge digital creasing and perforation machine is designed to elevate your productivity and perfect your paper-finishing tasks. With a wide range of impressive features, the Namibind 2 in 1 creasing and perforation machine offers versatility and precision that exceeds industry standards. It accommodates various paper sizes, from a minimum input size of 150*210 mm to a maximum of 320*660 mm, ensuring that your diverse needs are met effortlessly. One of its standout features is its exceptional creasing and perforation capabilities. The machine can handle paper thicknesses ranging from 60 g to 400 g for creasing and 60 g to 300 g for perforation. Its creasing speed of 4000 pages per hour ensures efficient and rapid processing, saving you valuable time. Precision is key, and the Namibind digital creasing and perforation machine delivers a minimum creasing distance of just 1 mm and a creasing precision of 0.3 mm. Plus, you can adjust the crease per sheet from 0 to 32 times, giving you unparalleled control over your creasing tasks. Counting is a breeze with positive and negative counting options, and you can store up to 30 different workgroups for easy access to frequently used settings. The machine also offers skew adjustment of up to +2 mm and step-less indentation depth adjustment, allowing you to fine-tune your results to perfection. The Namibind digital creasing and perforation machine employs a reliable suction feed system, capable of handling up to 100 mm of paper, ensuring smooth and consistent feeding. You can control the blowing volume with step-less adjustment for even greater precision. and, the transverse indentation tool provides additional versatility. With a voltage of 220V/50Hz and a power consumption of 200W, this machine is energy-efficient and environmentally friendly. It’s built to last, weighing 78 kg, and measuring 1560*560*480 mm in dimensions.
Model | Â DCM 3530 A |
Min. Input Paper Size | 150*210 mm |
Max. Input Paper Size | Â 320*660 mm |
Creasing Paper Thickness | Â 60 g-400 g |
Perforation Paper Thickness | Â 60 g-300 g |
Creasing Speed | Â 4000 pages/hour |
Min. Creasing Distance | Â 1 mm |
Min. Distance from edge | Â 5 mm |
Creasing Precision | Â 0.3 mm |
Crease per sheet | Â 0 to 32 times |
Count Function | Â Positive and Negative counting |
Workgroup storage | Â 30 group |
Skew Adjustment | Â +2 mm |
Indentation depth adjustment | Step-less Adjustable |
Feeding Type | Â Suction Feed |
Max. Feeding Paper | Â 100 mm |
Blowing Volume Regulation | Â Step-less adjustable |
Transverse Indentation Tool | 1 mm |
Voltage | Â 220 V/50 Hz/200 W |
Weight | Â 78 kg |
Dimensions | Â 1560*560*480 mm |
